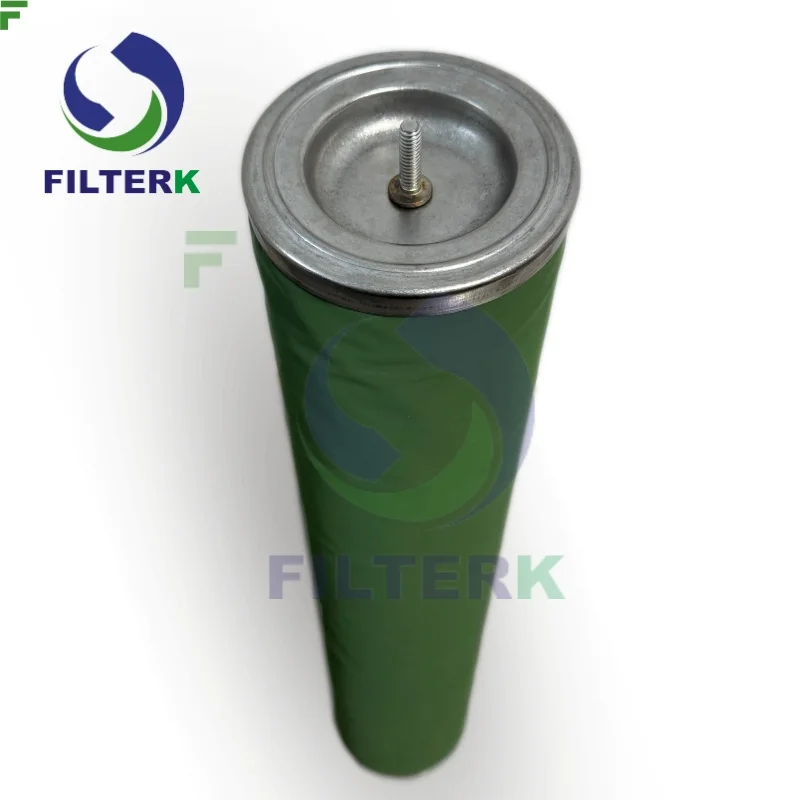

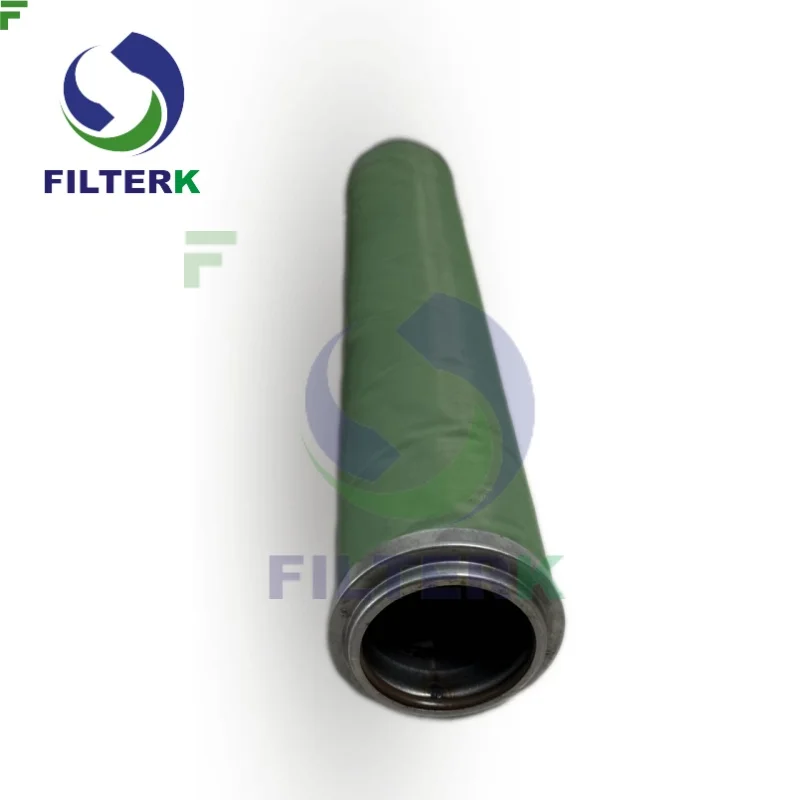

Stainless Steel Coalescing Filter Element with 99% Efficiency and 0.3u Porosity for Gas/Liquid Separation

Name: Stainless Steel Coalescing Filter Element with 99 Efficiency and 03u Porosity for GasLiquid Separation
Brand: FILTERK
Price: 20 USD

Quality Stainless Steel Coalescing Filter Element with 99% Efficiency and 0.3u Porosity for Gas/Liquid Separation for sale

Place of Origin : Jiangsu, China

Brand Name : FILTERK

MOQ : 1

Price : $20-30

Filtration Efficiency : 99%

Porosity : 0.3u

Weight : 0.8

Material : Stainless Steel

Outer Diameter : 150

Inner Diameter : 88

Height Options : 600, 800, 900, 1000, 1150

Operating Temperature : 5°C - 80°C

Skeleton Material : Carbon Steel Perforated

Filter Material : Teflon

Filter Material Form : Pleated, Wrapped

Operating Pressure : Up to 1.0 MPa

Max Temperature : 80°C

Min Temperature : -30°C

Liquid Aerosol Efficiency : 99.9% for 0.01 μm and larger

Contact Now

Product Description

Our high-performance stainless steel coalescing filter element is designed for efficient gas/liquid separation, dehydration,
andremoval of liquid aerosols and contaminants from compressed air and gas systems. The filter media features a multi-layer coalescing structure that captures and merges fine liquid droplets into larger ones, which are then drained away, ensuring clean,dry, and high-quality gas output.

Key Features:
* Durable Construction: Made of stainless steel for excellent corrosion resistance and long service life, suitable for harsh
environments.
* Efficient Coalescence: Advanced coalescing technology effectively removes oil, water, and other liquid aerosols with high
separation efficiency.
* Wide Compatibility: Ideal for compressed air, natural gas, biogas, and other gas applications requiring dehydration and
purification.
* Low Pressure Drop: Optimized design minimizes energy consumption and maintains system efficiency.
* Easy Maintenance: Replaceable filter element simplifies upkeep and reduces operating costs.

Applications:
* Compressed air systems
* Natural gas dehydration and purification
* Biogas processing
* Industrial gas pipelines
* Pneumatic equipment protection

Specifications:
* Material: Stainless steel (housing and media support)
* Filtration Efficiency: Up to 99.9% for liquid aerosols (0.01 μm and larger)
* Operating Pressure: Up to 1.0 MPa (standard, customizable for higher pressures)
* Operating Temperature: -30°C to 80°C
* Available in various sizes and micron ratings for custom needs.

Enhance your gas system's reliability and performance with our robust coalescing filter elements. Contact us for customized
solutions!

Specification

Parameters	Details
Filter Element Size	Outer Diameter: 150 Inner Diameter: 88
Height	600, 800, 900, 1000, 1150
Operating Temperature	5°C - 80°C
Skeleton	Carbon Steel Perforated
Filter Material	Teflon
Filter Material Form	Pleated Wrapped
Performance Characteristics	Strong Hydrophobicity, Strong Oil Permeability Large Filter Area, Simple Structure, Easy to Install

Stainless Steel Coalescing Filter Element with 99% Efficiency and 0.3u Porosity for Gas/Liquid Separation
